1. This machine manufacute wheel weight segments square design.

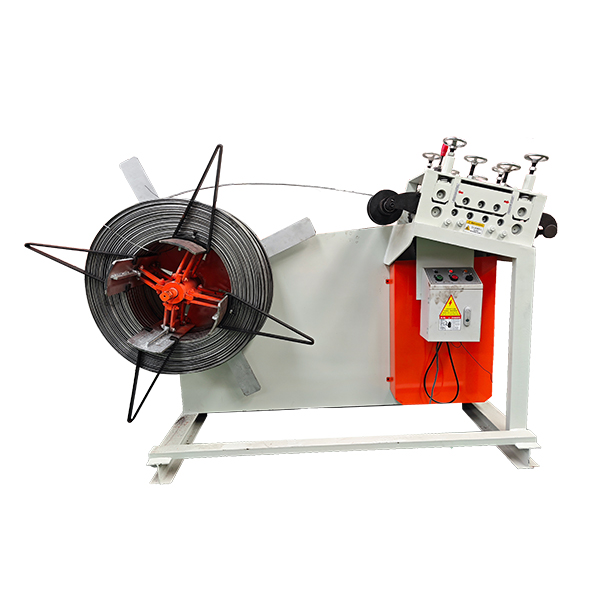

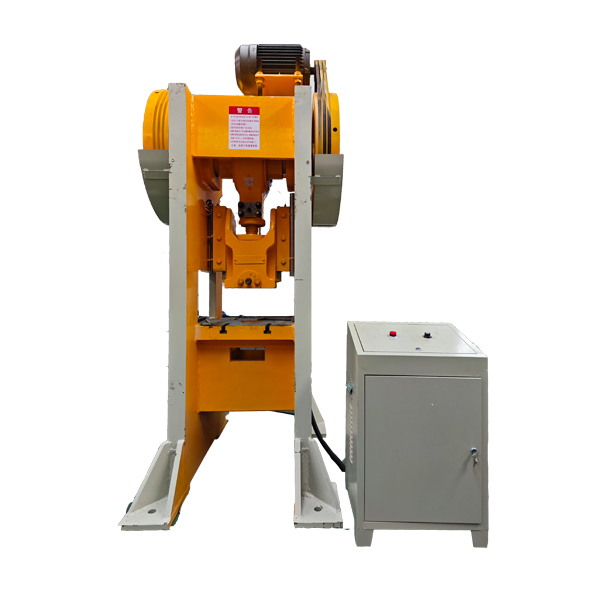

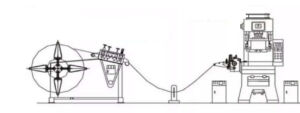

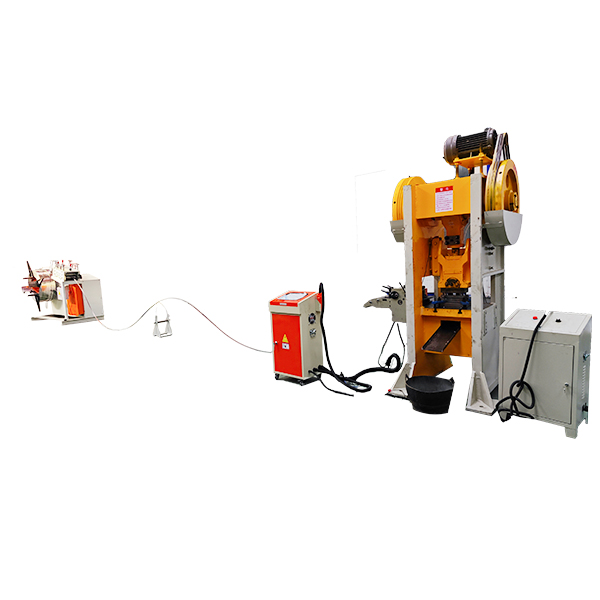

2. A complete set includes one 25T press machine, one raw material feeding, one integrated coiling&fattening device, two molds.
3. Raw material type is flat iron in roll, width:19mm-20mm, thickness: 3-4mm.
4. This machine produces wheel weight segments without waste of raw material.
5. There are two cavities in a mold, the machine produces two segments at one strok.
2. A complete set includes one 25T press machine, one raw material feeding, one integrated coiling&fattening device, two molds.
3. Raw material type is flat iron in roll, width:19mm-20mm, thickness: 3-4mm.
4. This machine produces wheel weight segments without waste of raw material.
5. There are two cavities in a mold, the machine produces two segments at one strok.
| Model | Unit | X600-25A |
| Specifications | ||
| Wheel Weight Type | Square design | |
| Tonnage | ton | 25 |
| Nominal Capacity | kn | 250 |
| Material Width | mm | 19 |
| Quantity Per Strok | pcs | 2 |
| Material Loss | % | 0 |
| Main Motor Power | kw | 3 |
| Quantity Per Minute | pcs | 300 |
| Quantity Per Hour | kgs | 5g:90-100kgs; 10g:180-200kgs |
Video: https://youtu.be/4dMcFcV8Y_E
* High speed press is available, welcome to inquire.
** Specifications and machine photos subject to XST’s modification in the case of any improvement.
