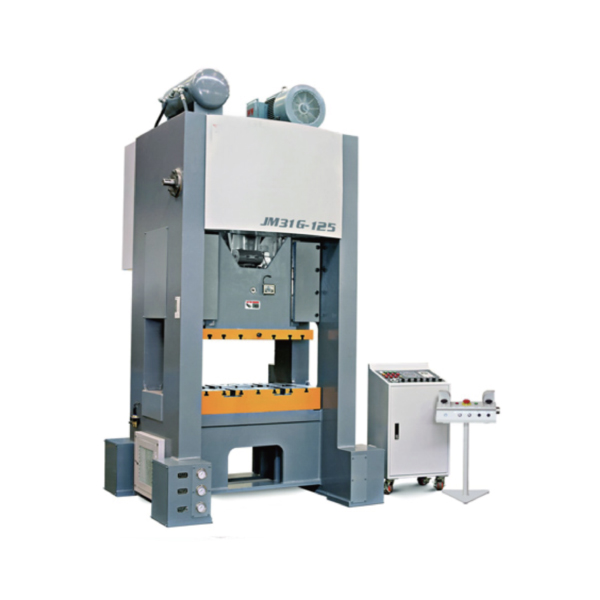

1. This high speed agntry type press is specifically designed to produce steel weight segments of round-cornered design. It cuts the raw material into small pieces and ready for zinc plating; the production rate is much higher than normal press and meets demand for big production capacity.
2. A complete set includes one 160T high speed agntry type press machine, one raw material feeding, one integrated coiling & fattening device, one winder for waste material, two molds.
3. Raw material type is iron flat sheet in roll, width:187mm, thickness 3mm.
4. There are 9 cavities in a mold, the machine produces 9 segments at one strok.
2. A complete set includes one 160T high speed agntry type press machine, one raw material feeding, one integrated coiling & fattening device, one winder for waste material, two molds.
3. Raw material type is iron flat sheet in roll, width:187mm, thickness 3mm.
4. There are 9 cavities in a mold, the machine produces 9 segments at one strok.
| Model | Unit | X600-160A |
| Specifications | ||
| Wheel Weight Type | Rounded design | |
| Tonnage | ton | 160 |
| Nominal Capacity | kn | 1600 |
| Material Width | mm | 187 |
| Quantity Per Strok | pcs | 9 |
| Material Loss | % | 25 |
| Main Motor Power | kw | 22 |
| Quantity Per Minute | pcs | Average 1080 |
| Quantity Per Hour | kgs | 5g:300-330kgs; 10g:600-660kgs |
Video: https://youtu.be/TxzfvMm-YZA
* Specifications and machine photos subject to XST’s modification in the case of any improvement.
